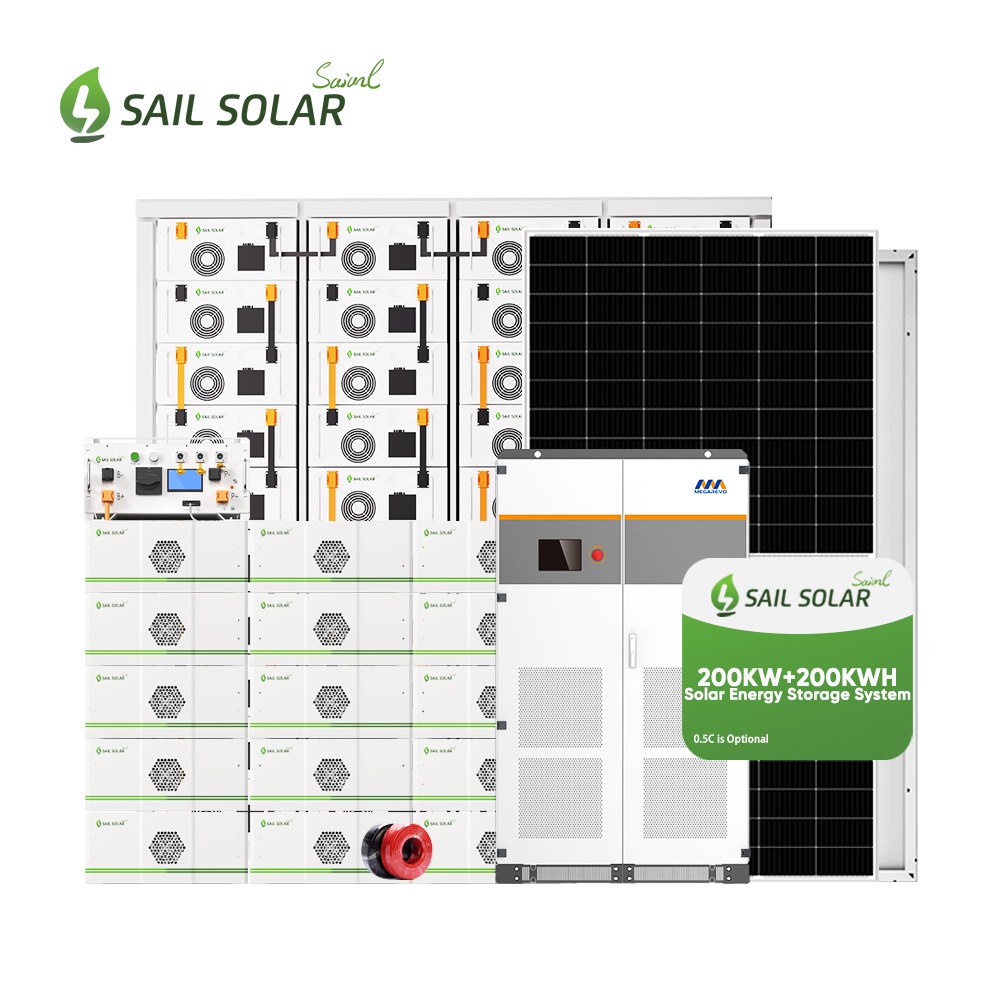

The 200kW / 200kWh Solar Energy Storage System provides a balanced energy solution for commercial and industrial users requiring higher load capacity and improved energy flexibility. Powered by a Megarevo 200kW hybrid inverter, the system supports simultaneous operation of solar PV, lithium battery storage, and grid connection.
This configuration enables effective peak shaving, demand charge reduction, and backup power for critical loads. With intelligent EMS control and scalable battery architecture, it is well suited for manufacturing facilities, logistics centers, and commercial parks seeking to reduce electricity costs and improve energy reliability.
Merkenavn :
SAIL SOLARProduktmodell :
SAS-200KW-ESSBatteritype :
Lithium BatteryGaranti :
5years/10yearsInverter Type :
HybridStørrelse: :
6000*2350*2380Batterispenning :
500V-1000VBeskyttelsesgrad :
IP65Utgangsspenning (V) :
380v/400v/415vMaks inngangs likespenning (V) :
800VUtgangsfrekvens :
50hz/60hz
The 200kW / 200kWh Solar Energy Storage System is designed for medium-scale commercial and industrial energy applications. Built with a Megarevo 200kW hybrid inverter, the system enables coordinated operation between solar PV, battery storage, and the utility grid.
This solution effectively reduces peak demand charges, improves solar utilization, and ensures reliable power supply for critical loads. The modular battery architecture allows future capacity expansion, while the intelligent EMS supports multiple energy management strategies.
Solar Panel
-Power range from 440W to 740W, suitable for diverse system capacities
-High-efficiency solar cells for increased energy generation
-Excellent performance under high temperature and low irradiation conditions
-Low power degradation for long-term energy yield stability
-Robust module structure with strong wind and snow load resistance
-Ideal for C&I solar + energy storage hybrid systems
The system is powered by Megarevo 200kW hybrid inverters, designed for commercial and industrial solar energy storage applications. The inverter integrates solar PV, lithium battery storage, and grid interaction into a single platform, supporting both grid-connected and off-grid operation.
With high power density and stable output capability, the 200kW hybrid inverter ensures efficient energy conversion and smooth power flow management under varying load and grid conditions. It supports seamless switching during grid outages, enabling uninterrupted power supply for critical loads.
Equipped with advanced control logic and communication interfaces, the inverter works in coordination with the EMS to optimize solar self-consumption, peak shaving, and load shifting. Its flexible system architecture allows parallel operation and easy integration into larger hybrid and microgrid systems.
Lithium Battery
The system is equipped with a 200kWh lithium battery energy storage unit, designed for commercial and industrial hybrid solar energy storage applications. The battery adopts a modular high-voltage architecture, delivering stable performance, high energy efficiency, and reliable charge and discharge capability.
An advanced BMS is integrated to provide real-time monitoring, multi-level protection, and intelligent thermal management, ensuring safe operation under various working conditions. The battery system supports seamless integration with hybrid inverters and energy management systems, enabling peak shaving, load shifting, and backup power functions.
With long cycle life and scalable design, the 200kWh battery unit offers flexible energy storage capacity and long-term operational stability, making it suitable for factories, commercial buildings, industrial parks, and microgrid projects.

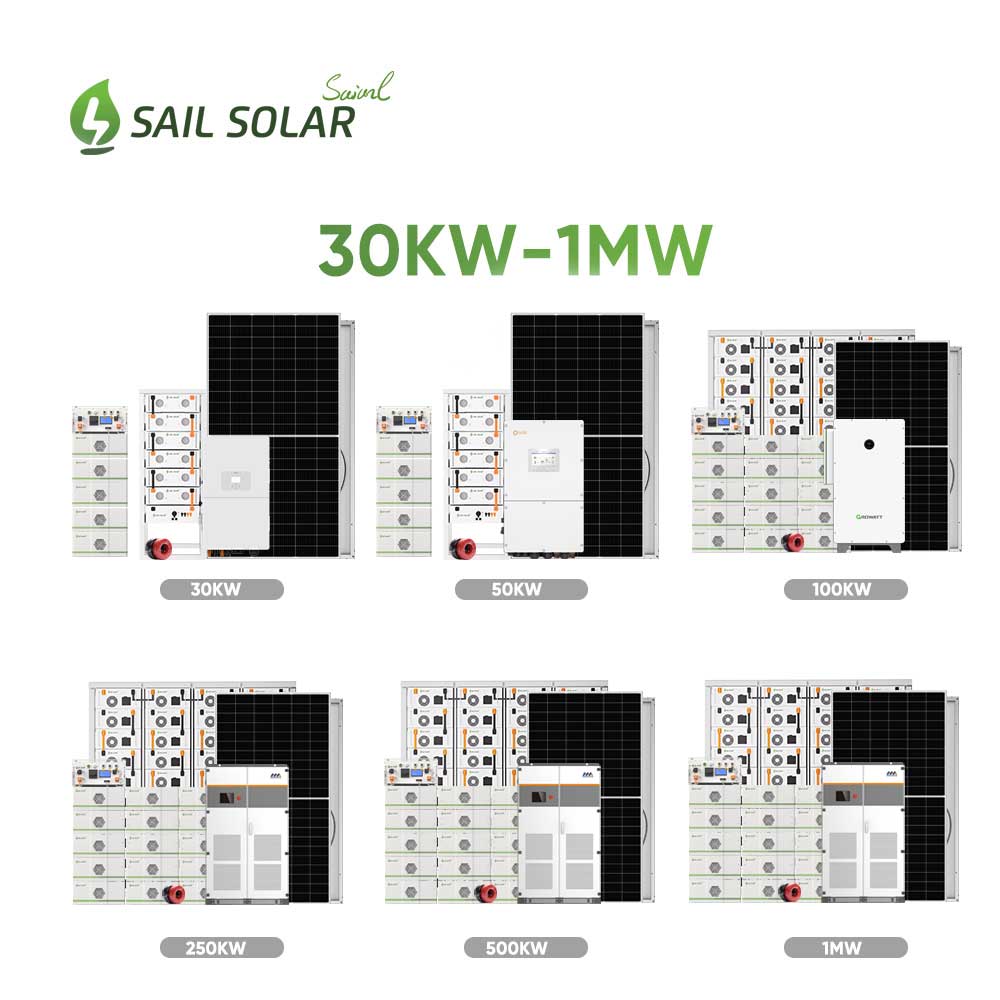

30kW – Small commercial, retail stores, light industrial loads
50kW – Commercial buildings, small factories, solar + storage projects
100kW – Medium C&I applications with higher load demand
250kW – Industrial facilities, warehouses, business parks
500kW – Large commercial and industrial energy storage systems
1MW – Utility-scale, microgrid, and high-power industrial projects
