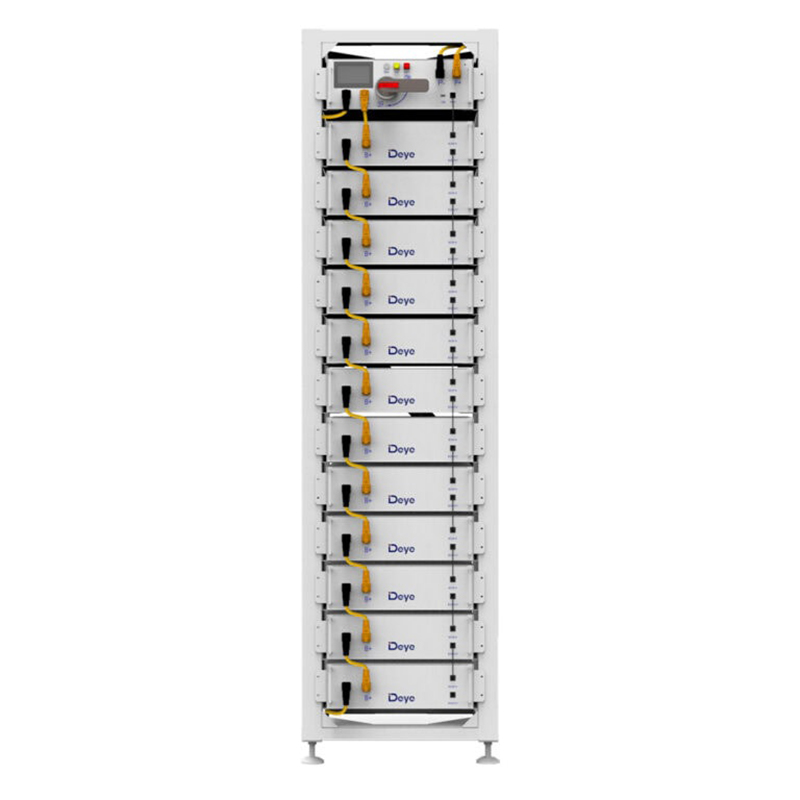

Deye BOS-G-Pack 5.1 Lifepo4 High Voltage Lithium Battery Small-Scale C&I Energy Storage Solution

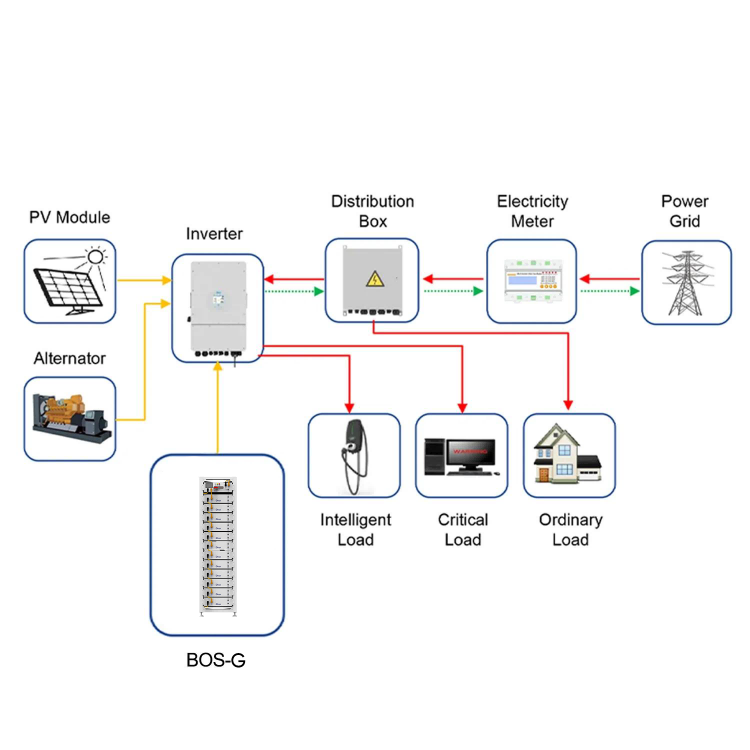

This diagram illustrates a complete hybrid solar energy storage system, integrating solar power, battery storage, grid connection, and backup generation to ensure stable and efficient energy supply.

The system is centered around a hybrid inverter, which intelligently manages power flow between multiple energy sources:

PV Modules (Solar Panels) generate clean energy during the day

Battery Storage System (BOS-G) stores excess energy for later use

The alternator (Generator) provides backup power when needed

Utility Grid ensures continuous power availability

Solar energy is prioritized to power loads and charge the battery

Stored energy is used during nighttime or power outages

The system can automatically switch between solar, battery, generator, and grid. Excess power can be fed into the grid (if permitted)

The system supports intelligent distribution of electricity to different types of loads: Intelligent Load – optimized for energy-saving and smart control, Critical Load – ensures uninterrupted power for essential equipment. Ordinary Load – standard household or commercial usage
