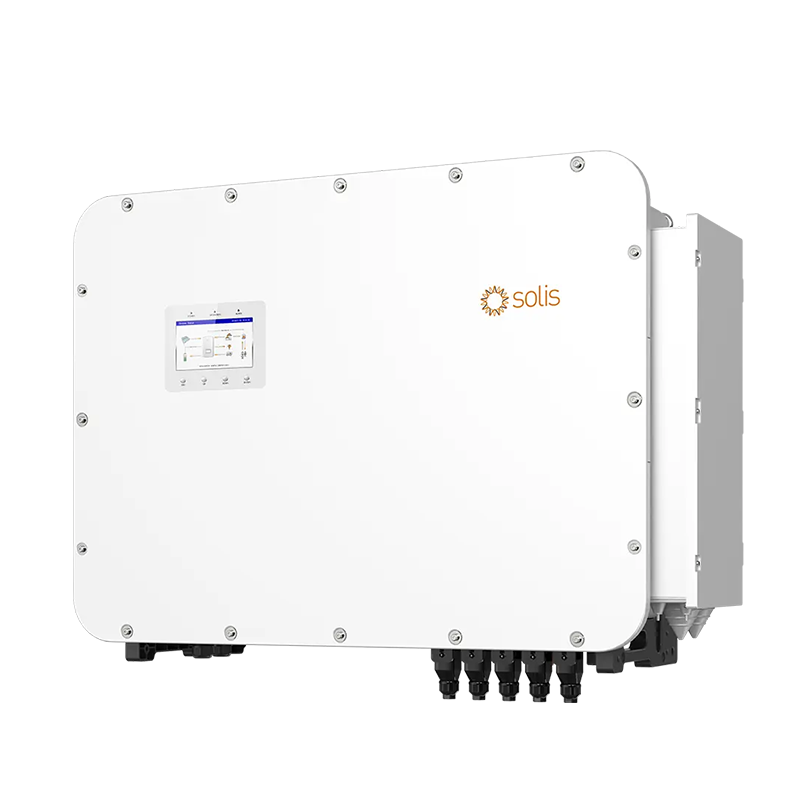

Introducing the S6-EH3P(80-125)K10-NV-YD-H Series, High-voltage. three-phase energy storage for commercial applications. This advanced inverter series boasts a maximum charge/discharge current of 100A + 100A across two independently controlled battery ports. It features 10 integrated MPPTs, each supporting a string current of up to 21A – ensuring exceptional power delivery. Designed for both on-grid and off-grid applications, the S6-EH3P(75-125)K10-NV-YD-H series supports parallel operation of up to six units. Its dedicated backup port can handle overloads of up to 2.0 times rated power for short durations. Thanks to its wide voltage range, the series is compatible with a broad selection of battery types and supports peak shaving control in both "self-use" and "generator" modes.
Merkenavn :
SolisPower Range :
80-125KWDriftstemperatur :
-25 ~ +60°CKommunikasjon BMS :
CAN, RS485, Ethernet, Optional: Wi-Fi, Cellular, LANMaks. Effektivitet :
97.5%Garanti :
5 YearEuro-effektivitet :
97.1%Avkjøling :
Intelligent fan-coolingMPPT-effektivitet :
98.5%Integrert :
YesBeskyttelsesgrad :
IP66THD :
< 2%Installasjonsstil :
Wall-Mounted
Leading Features
-Supports up to 2x rated PV input, maximizing solar energy utilization
-Supports a maximum string input current of 21A, ensuring compatibility with high-power PV modules
-Compatible with 100–314Ah battery modules, reducing overall system costs
-Supports fast battery charging with a maximum charging current of 200A
-Two independent battery ports for flexible configurations and easy capacity expansion
-Delivers 160% overload for 200ms in off-grid mode, ensuring stable startup of heavy loads
-Offers flexible control for weak grid and genset-hybrid scenarios, reducing investment costs
-SolisCloud: Smart remote control, AI optimisation, and instant troubleshooting - all in one platform
-Integrates PV and storage for demand management and anti-reverse flow functions
-Provides dynamic reactive power compensation to improve grid power factor and reduce reactive power charges
-Utility bypass function allows direct grid supply to backup loads
-Patented cooling technology ensures reliable operation even under high-temperature conditions
-Supports both DC and AC coupling, for flexible retrofits and system expansions
-Ensures reliable backup power across diverse scenarios through battery reserve management
-Extends supply time for critical loads with intelligent load prioritization
-Offers a versatile three-in-one interface for seamless integration of on-grid PV, wind power, and diesel generators
-Achieves on- and off-grid transitions in less than 10ms, ensuring an uninterrupted power supply
-Supports multi-unit parallel operation up to 1.25MW (Solis STS cabinet recommended for systems over 6 units)

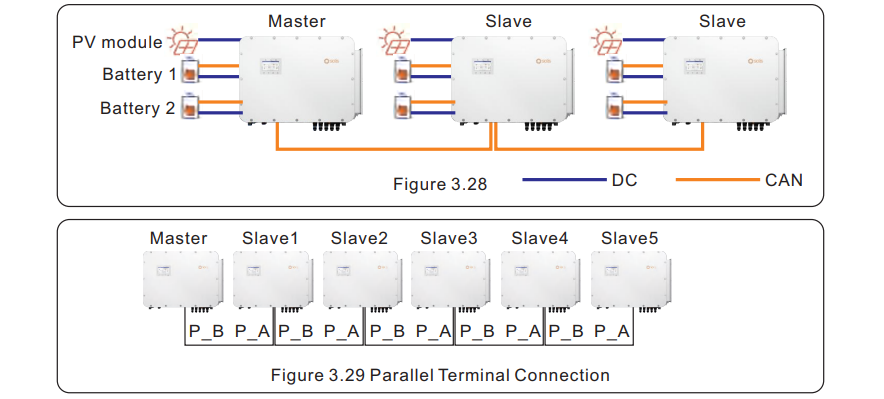

Parallel Inverter Connection
Up to 6 units of the inverter can be connected in parallel, if you have demand for 7-10 pcs in parallel mode, you should ask local solis technology support.
Please connect the paralleled inverters by using P-A and P-B terminals.
Standard CAT5 with shielding layers internet cable can be used.
1. ALL inverter MUST be connected to their own HV battery.
2. NOT support two or more inverters connect to the same one battery.

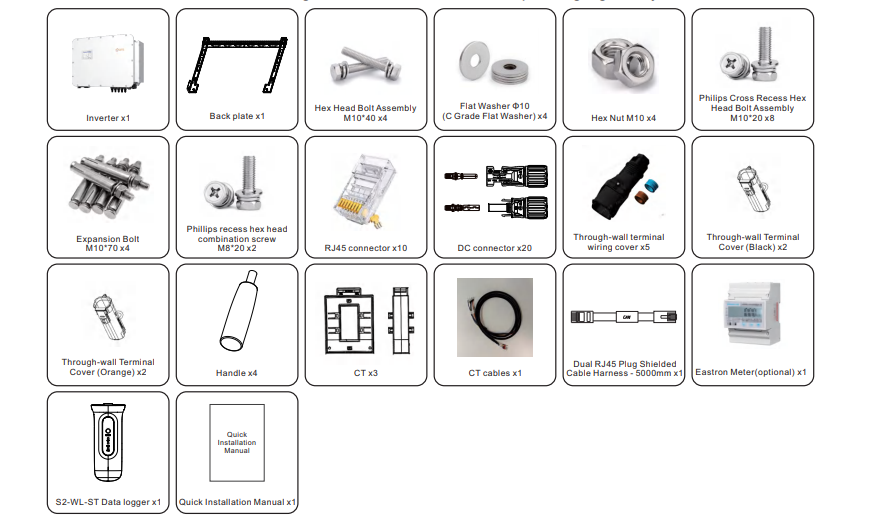

Installation materials and accessories
The right side is equipped with complete installation accessories and matching mounting materials for the inverter. All necessary fitting parts are fully prepared, perfectly compatible with the unit, greatly facilitating on-site installation work, making construction quicker and more convenient.
