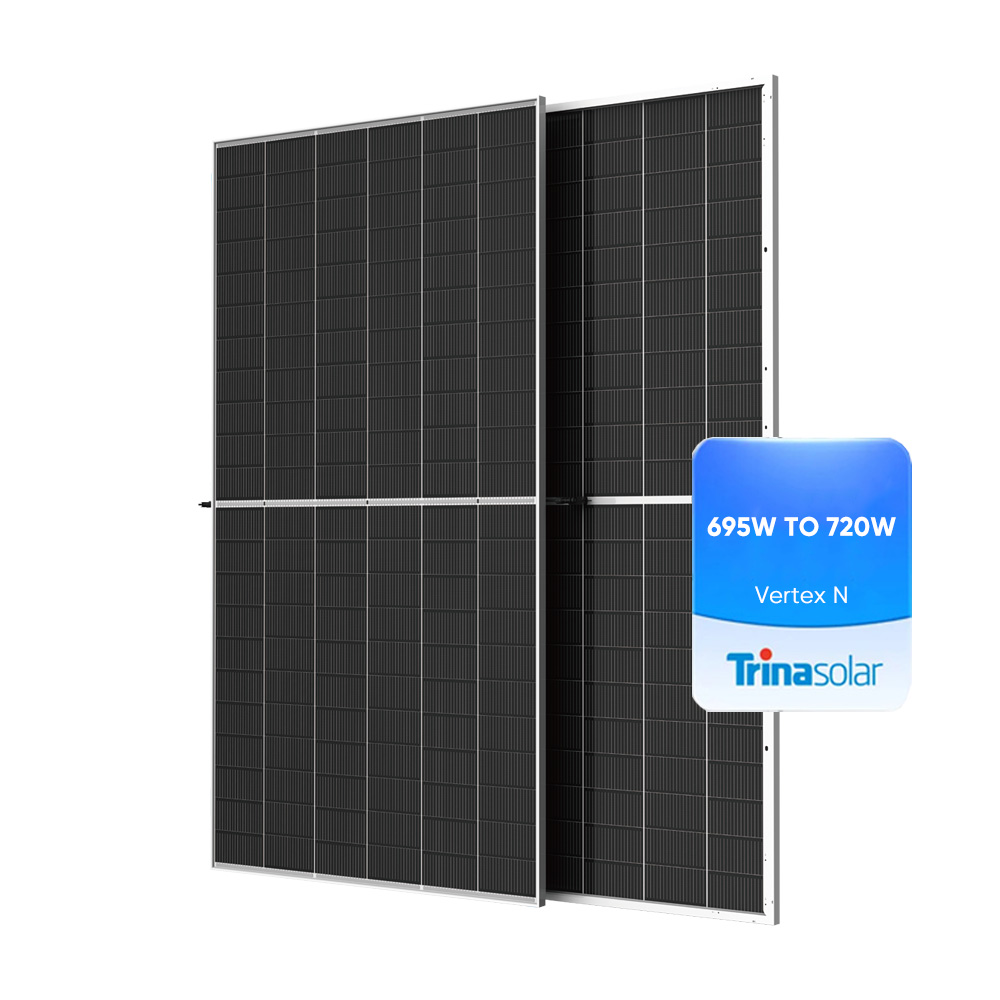

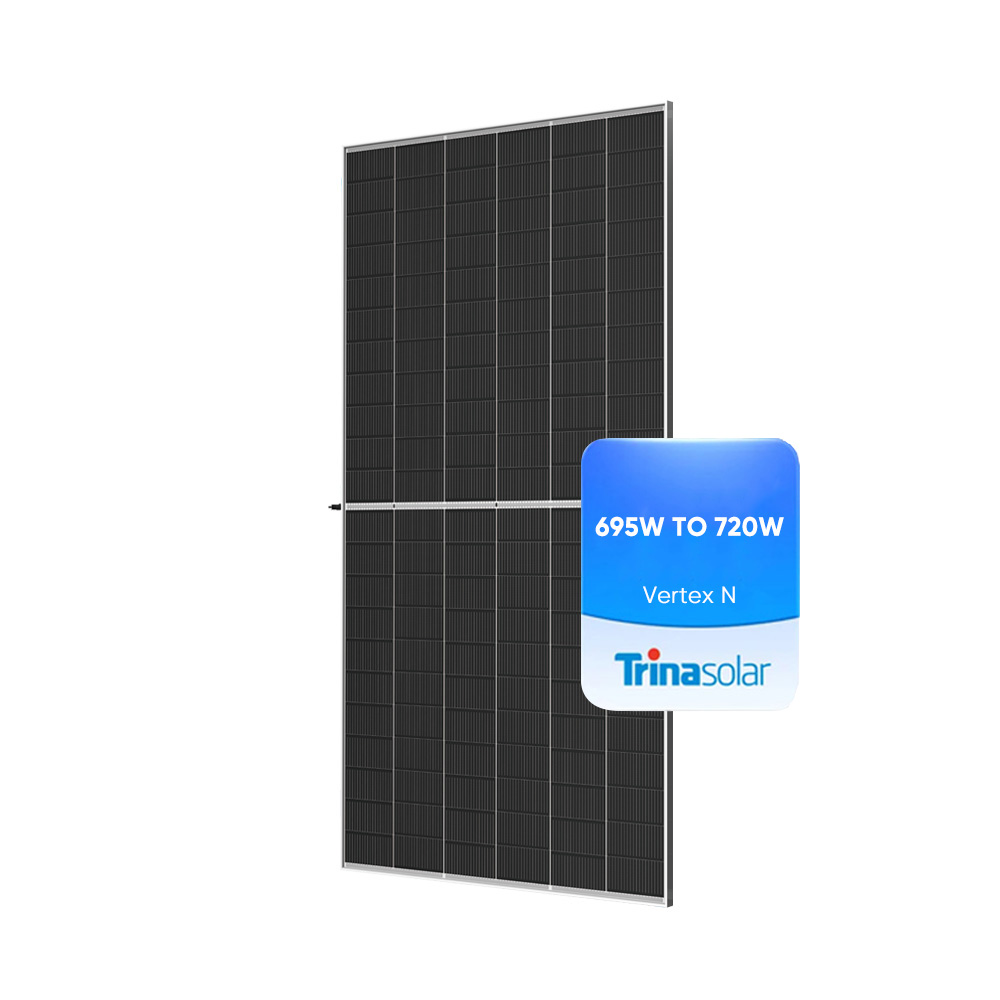

The Trina Solar TSM-NEG21C.20 is an ultra-high-power photovoltaic module featuring cutting-edge N-type i-TOPCon cell technology. With a power output range of 695W to 720W, this module is designed for utility-scale solar applications that demand maximum energy yield and system efficiency.
Merkenavn :
TrinaPower Range :
695W-720WDimensjoner på modul :
2384×1303×33 mmVekt :
38.3 kgGlass :
2.0 *2.0mmRamme: :
Aluminum AlloyKoblingsboks: :
IP 68 ratedKabel :
Photovoltaic Technology Cable 4.0mm2Maks. Effektivitet :
23.2Vind-/snøbelastning :
5400Pa/2400PaKobling :
MC4 EVO2 / TS4 PLUS / TS4*Antall celler :
132 Cells
-High Power Output: Delivers up to 720W with a module efficiency exceeding 22%, reducing the levelized cost of electricity (LCOE).
-N-type i-TOPCon Technology: Ensures superior performance in terms of temperature coefficient, low light response, and long-term reliability.
-Low Degradation: First-year degradation as low as 1%, and annual degradation of just 0.4%, ensuring strong power retention over time.
-Enhanced Bifaciality: High bifaciality factor increases rear-side power gain, improving energy yield on suitable installations.
-Robust and Reliable: Engineered with high mechanical load resistance and certified to withstand harsh environmental conditions, including wind and snow loads.
-Larger Wafer Format (210mm): Enables higher module output and reduces BOS (Balance of System) and LCOE.
The module is engineered to maximize energy generation, especially in large ground-mounted systems. Its high module efficiency, superior temperature performance, and excellent bifaciality enable higher energy yields even under challenging environmental conditions. The bifacial glass-glass design allows additional power generation from the rear side, increasing the total output of the system.
Product Parameters(STC)
| Module Type | TSM-NEG21C.20 700W | TSM-NEG21C.20 705W | TSM-NEG21C.20 710W | TSM-NEG21C.20 715W | TSM-NEG21C.20 720W |
|
Power Tolerance-PMAX(W)
|
0 ~ +5
|
||||
|
Maximum Power Voltage-VMPP(V)
|
40.5
|
40.7
|
40.9
|
41.1
|
41.3
|
|
Maximum Power Current-IMPP(A)
|
17.29
|
17.33
|
17.36
|
17.40
|
17.44
|
|
Open Circuit Voltage-VOC(V)
|
48.6
|
48.8
|
49.0
|
49.2
|
49.4
|
|
Short Circuit Current-ISC(A)
|
18.32
|
18.36
|
18.40
|
18.44
|
18.49
|
|
Module Efficiency η m (%)
|
22.5
|
22.7
|
22.9
|
23.0
|
23.2
|
|
Operational Temperature
|
-40~+85ºC
|
||||
|
Maximum System Voltage
|
1500V DC (IEC)
|
||||
|
Max Series Fuse Rating
|
35A
|
||||
|
Temperature Coeffcient of PMAX
|
- 0.29%/°C
|
||||
|
Temperature Coeffcient of VOC
|
- 0.24%/°C | ||||
|
Temperature Coeffcient of ISC
|
0.04%/°C | ||||
