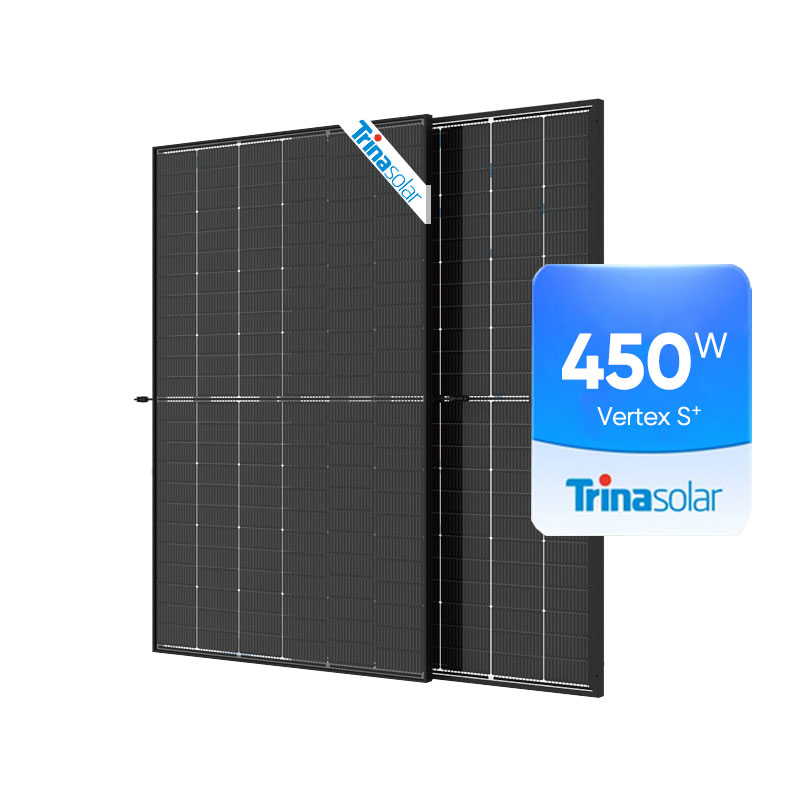

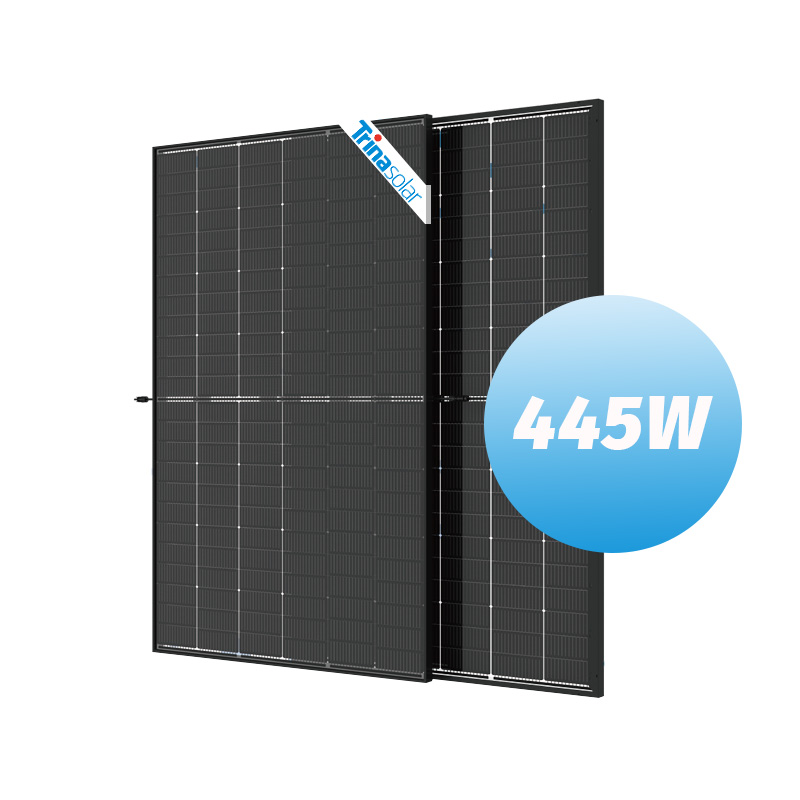

Trina Tier 1 Vertex S Series 425Wp 430Wp 435Wp 440Wp 445Wp 450Wp Half Cell Solar Panel Monocrystalline TSM-NEG9RC.27 Bifacial Solar Panel
Merkenavn :
Trina Solar PanelPower Range :
TSM-NEG9RC.27 425w-450wDimensjoner på modul :
1762×1134×30 mmVekt :
21kgGlass :
1.6 mm (0.06inches) A A AR Coating Heat Strengthened GlassRamme: :
30mm(1.18 inches) 28.5 Anodized Aluminium AlloyKoblingsboks: :
IP 68 ratedKabel :
Photovoltaic Technology Laminate Cable 4.0mm2 (0.006 inches2) Portrait: 350/280 mm(13.78/11.02 inches) Length can be customizedMaks. Effektivitet :
22.5%Vind-/snøbelastning :
5400Pa/2400PaKobling :
Modules per box: 36 pieces Modules per 40’ container: 936 piecesAntall celler :
144cells
As the first ultra-high power panels specifically designed for homes and commercial buildings, the Vertex S series open up a new era. Up to 450W module is perfectly designed to fulfill power, efficiency, size, weight, appearance, mechanical load, reliability requirements of rooftop application! Best balance of power and size & weight.
Vertex S comes with an extended 15-year product warranty and a full 25-year performance warranty-for peace of mind and long-lasting returns.
The upgraded Vertex S series modules feature excellent product performance along with innovative and design-inspired aesthetics.
Small size, high power
Utilizing high-density interconnect technology, it delivers up to 450 W of power and up to 22.5% module efficiency. Improved thermal performance enhances performance in high-temperature environments.
Designed to be compatible with existing mainstream inverters, optimizers, and mounting systems, it's perfectly sized, lightweight, and easy to operate.
Product Parameters(STC)
| Module Type |
TSM-NEG9RC.27 425W
|
TSM-NEG9RC.27 430W | TSM-NEG9RC.27 435W | TSM-NEG9RC.27 440W | TSM-NEG9RC.27 445W | TSM-NEG9RC.27 450W |
|
Power Tolerance-PMAX(W)
|
0 ~ +5
|
|
||||
|
Maximum Power Voltage-VMPP(V)
|
42.9
|
43.2
|
43.6
|
44.0
|
44.3
|
44.6
|
|
Maximum Power Current-IMPP(A)
|
9.92
|
9.96
|
9.99
|
10.01
|
10.05
|
10.09
|
|
Open Circuit Voltage-VOC(V)
|
50.9
|
51.4
|
51.8
|
52.2
|
52.6
|
52.9
|
|
Short Circuit Current-ISC(A)
|
10.56
|
10.59
|
10.64
|
10.67
|
10.71
|
10.74
|
|
Module Efficiency η m (%)
|
21.3
|
21.5
|
21.8
|
22.0
|
22.3
|
22.5
|
|
Operational Temperature
|
-40~+85ºC
|
|
||||
|
Maximum System Voltage
|
1500V DC (IEC)
|
|
||||
|
Max Series Fuse Rating
|
25A
|
|
||||
|
Temperature Coeffcient of PMAX
|
- 0.34%/°C
|
|
||||
|
Temperature Coeffcient of VOC
|
- 0.25%/°C | |||||
|
Temperature Coeffcient of ISC
|
0.04%/°C | |||||
AUTHORIZATION
Trina Solar is highly committed to retaining its 'leadership in mono’and being a loyal partner in its distribution network.
We have obtained their official authorization and established a long-term, stable, and sustainable cooperative relationship.
